On-Grid Solar Hybrid Solution



QEOS ENERGY’s core offering are cost-effective, reliable and practical solar hybrid systems. We build these systems by synchronizing our modular, transportable solar solutions with the current utility provider. In a typical configuration the solar system shaves off part of the peak maximum demand, while the on-grid power guarantees reliable power 24/7, even when the sun isn’t shining. Our Designs are scalable and can be deployed as a solar carpark to a Large Scale Solar Farm.

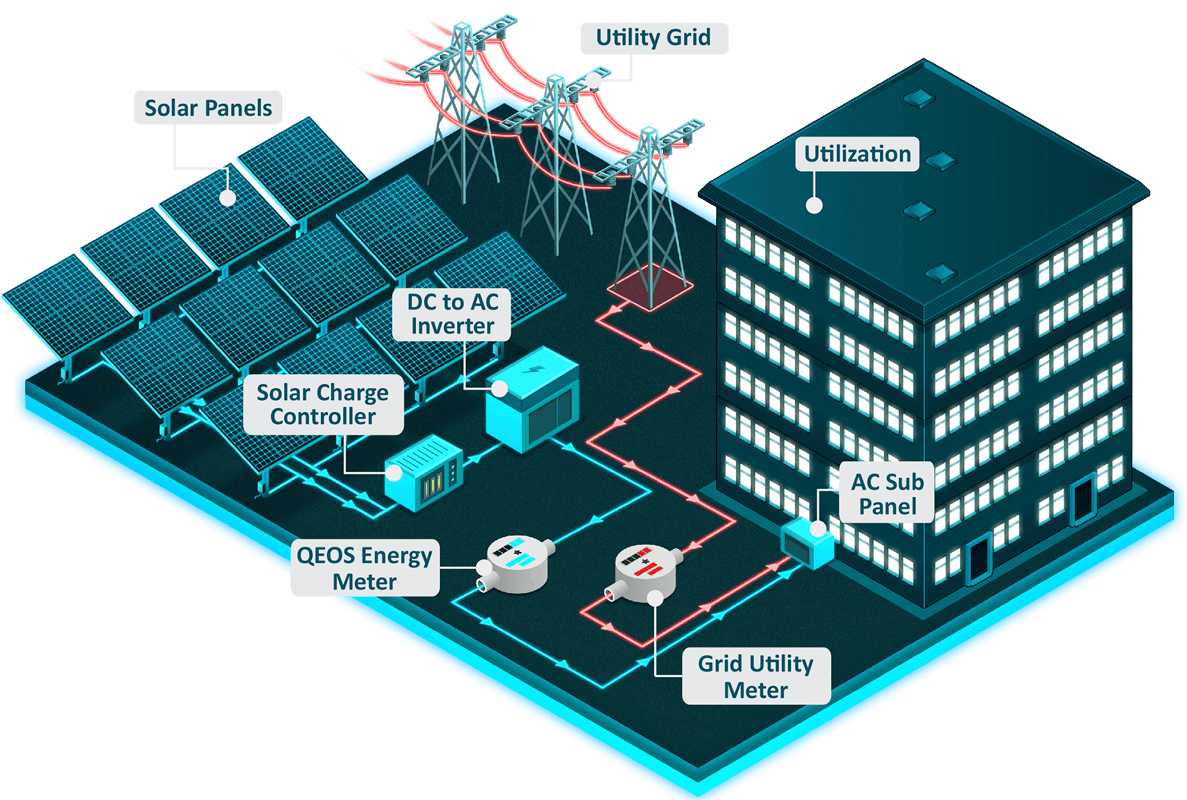

On-Grid System Overview


System Design Capacity 1 kW
Output Power 230 VAC
Frequency Range 50/ 60 Hz
System Performance Warranty 25 Years
Average Daily Power Generation (kWh) 7.6 kWh
Sunlight Minium Requirement 50%
Battery Full Charging (Normal Sun) 2.2 Hours
Operating Ambient Temperature Range 40 c
Remote Monitoring System Yes

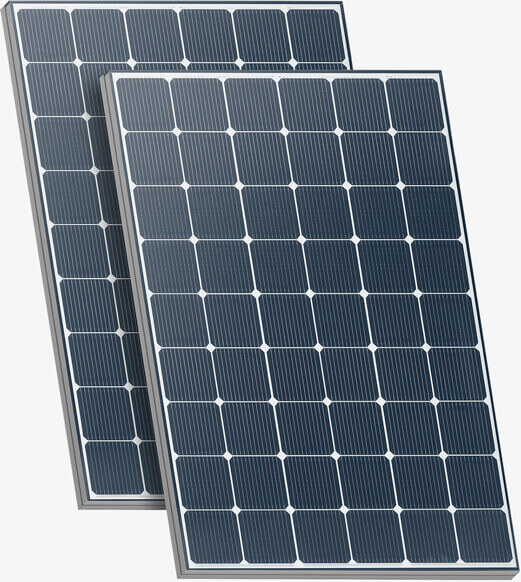

Solar Panel


Cell Type Polycrystalline Silicon 6 inches
Maximum Power (PMAX) 320 W
Maximum System Voltage 1500 V DC
Maximum Power Voltage (VMP) 34.0 V
Maximum Power Current (Imp) 6.90 A
Open Circuit Voltage 41.8 V
Short Circuit Voltage 7.40 A
Size of Module (L x W x H) 1970 mm x 992 mm x 40 mm
Frame (Type, Material, Thickness) Anodized Alu, Ally Frame, 35 mm Thickness
Quality of Cells 72 Pieces (6 x 12)
Weight 25.8 kg

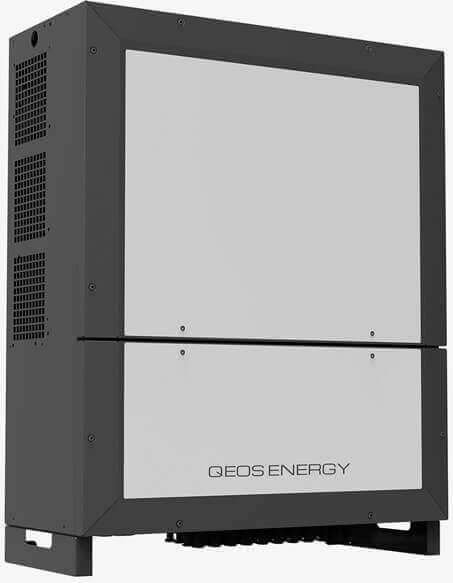

Combiner Box


Type DC Combiner Box 8/16 input
Max PV String Voltage 1500V DC
Max PV String Parallel Inputs 8/16
Rated Fuse current for each string 10A/15A (replaceable)
Input terminal type 4-6 mm²
Output terminal 50 mm²
Protection Class IP65
Weight 36/38 Kg
Dimension (W x H x D 750 mm x 580 mm x 180 mm

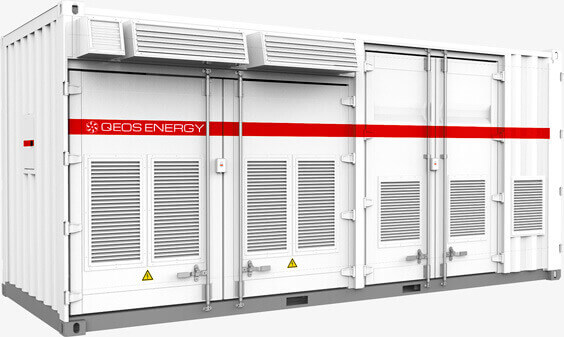

DC to AC Inverter


Type Centralized inverter
Maximum DC Voltage 1000 V
Maximum DC Current 4880 A
Nominal AC Output 4 x 2000 kW
Efficiency >98.7%
Dimension (W x H x D) 6058 mm x 2896 mm x 2438 mm
Weight (kg) Approx. 13.8T
